Operating Manual

OIL LUBRICATION

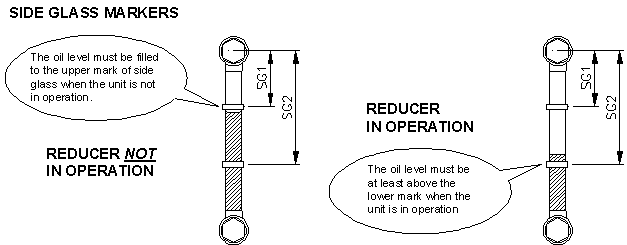

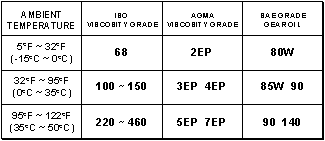

Lubrication oil on most models is drained before shipment.  Please check to make sure the  appropriate amount and type of oil supply has been added before attempting operation.  Use low viscosity oil during winter or in low ambient temperature.  Use high viscosity oil during summer or in high ambient temperature.  Use Mild EP Oil.  Please use lubrication oils recommended on the right.  Do not mix different brands of oils.

OIL LUBE REPLENISHMENT

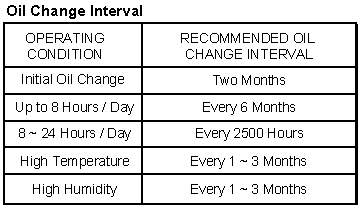

- Under all operating conditions, the DARALI Cycloidal Reducer needs the initial oil change after 2 months of service.

- Based on an 8 hours per day application, subsequent oil change shall be performed every 6 months.  For an 8 ~ 24 hours per day application, perform subsequent oil change every 2500 hours.  A more frequent oil change will help achieving much longer service life.

- If the unit is running under heavy operating condition or in a high temperature, high humidity, or corrosive environment, the lubricants have to be changed more frequently. (i.e. every 1 ~ 3 months)
